3.5x200 Mounted Head Nylon Cable Ties

3.5x200mm Mounted Head Nylon Cable Ties are designed for securing wire bundles while providing a built-in mounting point for screw-on installation. Made from UL Nylon 66, these mounted head Cable Ties combine reliable bundling strength with a fixed mounting solution for panels, walls, and other support surfaces. The integrated mounting head allows the cable bundle to be fastened directly after tying, helping create a stable and organized wiring layout.

With a 3.5mm width, 200mm length, 42mm maximum bundle diameter, and 50 lbs (22 kg) tensile strength, this model is suitable for medium-sized cable bundles in electrical wiring, control panels, equipment assembly, and industrial cable management. The nylon construction provides good insulation, heat resistance, corrosion resistance, and aging resistance, with an operating temperature range of -35°C to 85°C. Natural, UV black, and other colors are available for different application requirements.

Key Features

• 3.5mm width and 200mm length for medium-sized cable bundles

• 50 lbs (22 kg) tensile strength

• Supports bundles up to 42mm in diameter

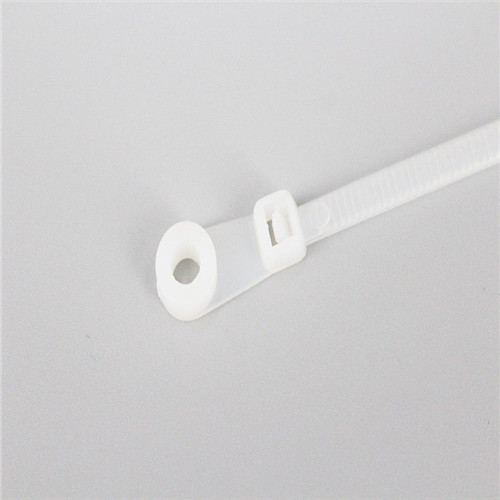

• Integrated mounted head for screw-on installation

• Made from UL Nylon 66 with UL 94V-2 classification

• Operating temperature range from -35°C to 85°C

• Suitable for panel, wall, electrical, and industrial wiring applications

Applications

These mounted head nylon Cable Ties are suitable for securing and fixing wire bundles on panels, walls, control cabinets, electrical equipment, machinery, and industrial wiring installations.

Specification

(if you can't find your interested size, pls contact us, these only part of size.)
