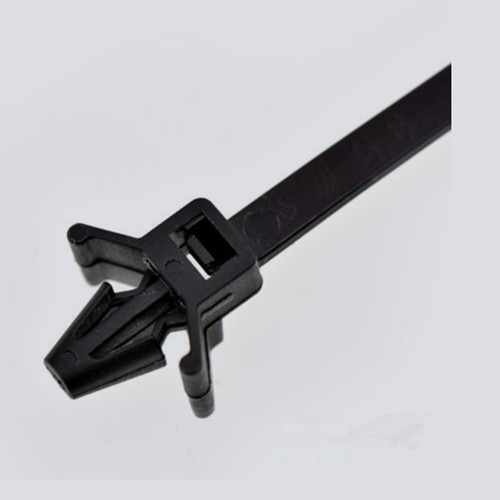

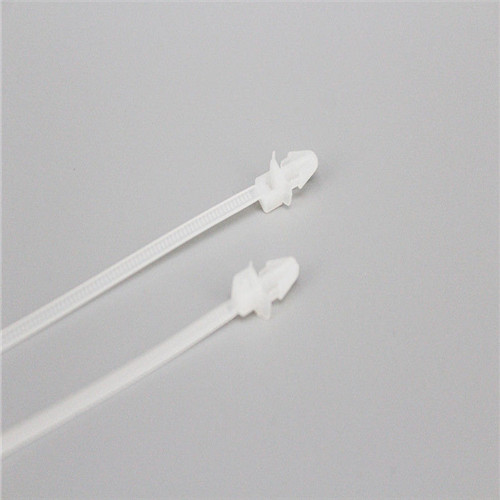

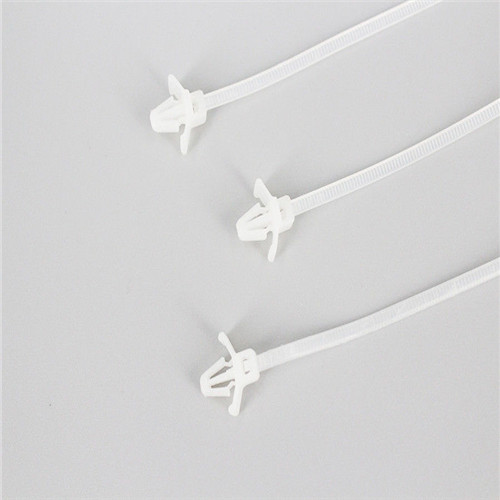

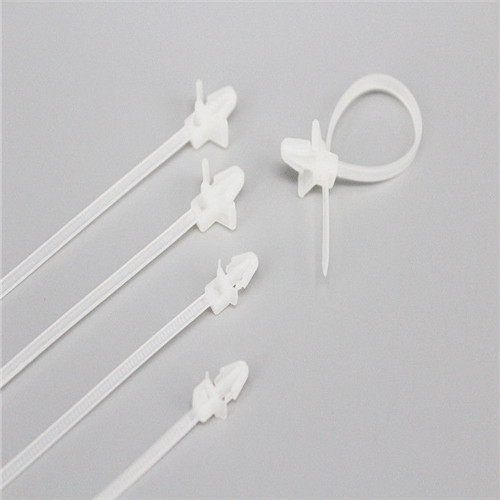

4.8x190mm Push Mount Cable Tie ROHS UL approved

4.8x190mm Push Mount Cable Ties are panel-mount Cable Ties designed to secure wire bundles while attaching them directly to a mounting panel or chassis. The integrated push-mount base is inserted into a prepared panel hole, allowing the cable tie to be fixed in position before the bundle is tightened. This combined fastening design helps organize wiring while reducing the need for separate cable tie mounts.

Made from UL-approved Nylon 66, these 4.8 mm push mount Cable Ties provide 50 lbs tensile strength together with good electrical insulation and resistance to heat, aging, and corrosion. The 190 mm strap length is suitable for compact and medium-sized wiring assemblies, while the specified bundle diameter is up to approximately 45 mm. The material is UL 94 V-2 rated and operates from -35°C to 85°C.

These push mount Cable Ties are suitable for automotive wiring, control cabinets, electrical panels, equipment assembly, machinery, and other applications where cable bundles need to be secured to a panel or chassis. Natural and UV black are standard options, with other colors available for OEM requirements.

Key Features

• 4.8 × 190 mm push mount cable tie

• Integrated push-mount base for panel installation

• 50 lbs tensile strength

• Made from UL-approved Nylon 66

• UL 94 V-2 rated material

• Bundle diameter up to approximately 45 mm

• Tool-free push mounting into a prepared panel hole

• Natural, UV black and other colors available

Applications

Suitable for automotive wiring, control cabinets, electrical panels, machinery, equipment assembly, appliance wiring, and cable harnesses where the wire bundle must be securely attached to a panel or chassis.

Specification

(if you can'tfind your interested size,pls contact us,these only part of Cable Ties size.)
