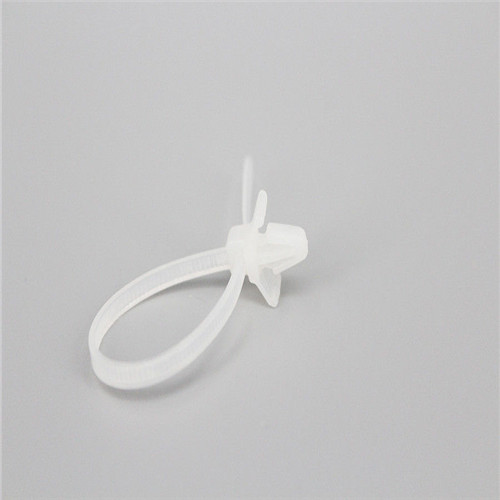

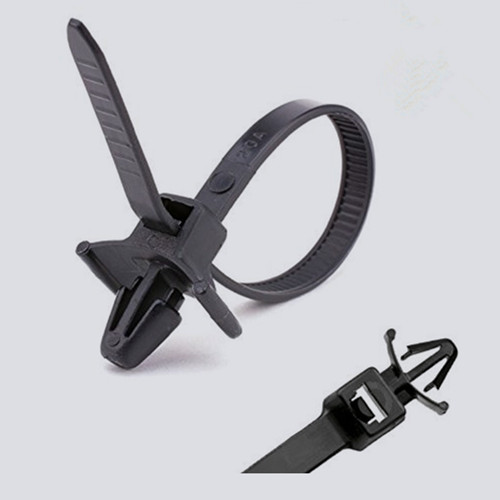

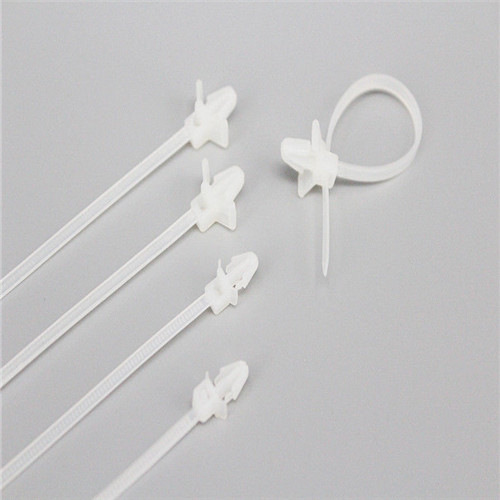

2.5x100mm White and Black Push Mount Cable Ties  UL approved

The 2.5x100mm White and Black Push Mount Cable Tie is a compact panel-mount cable tie designed to bundle wires and secure them directly to a mounting panel. Made from UL Nylon 66, it combines an 18 lbs tensile strength with an integrated push-mount head, providing a practical solution for organized wiring where installation space is limited. The low-profile design is well suited to smaller wire bundles and compact equipment assemblies.

With a 2.5mm width and 100mm length, this push mount cable tie supports cable bundles up to 22mm in diameter. Its integrated mounting section allows the cable bundle to be positioned and fixed to a panel through the mounting hole, reducing the need for a separate cable tie and mounting base. White and UV black are available as standard colors, with other colors available for OEM requirements. The Nylon 66 construction provides good insulation, heat resistance, aging resistance, and mechanical strength for general electrical and industrial applications.

Key Features

• 2.5x100mm compact push mount cable tie

• UL Nylon 66 material with UL 94V-2 rating

• 18 lbs / 8 kg tensile strength

• Maximum bundle diameter of 22mm

• Integrated push-mount design for panel installation

• Low-profile solution for compact wiring assemblies

• Operating temperature from -35°C to 85°C

• White, UV black, and custom colors available

Applications

Suitable for compact electrical wiring, control panels, equipment assembly, automotive wiring, and other applications requiring both cable bundling and panel fixing in a space-efficient design.

Specification

(if you can't find your interested size,pls contact us,these only part of  size.)
