4.8x120mm  ROHS approved Push Mount Cable Tie

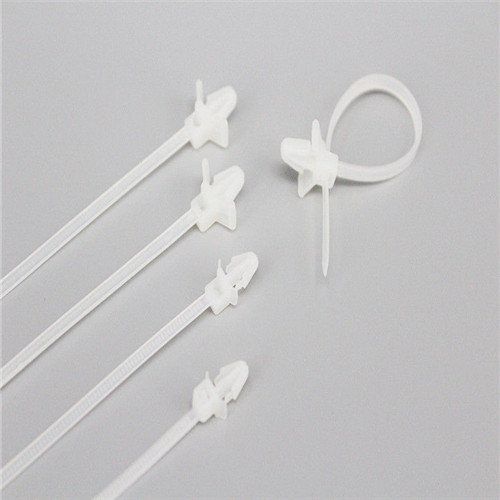

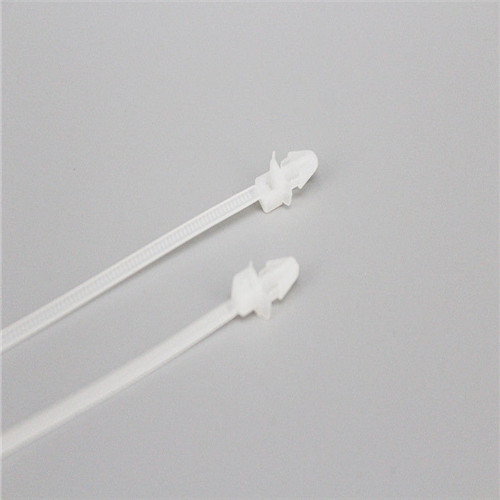

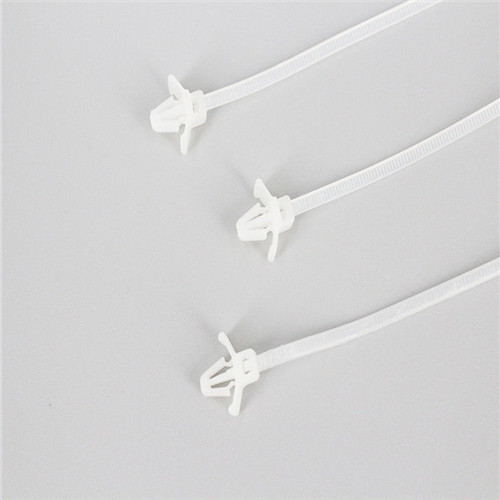

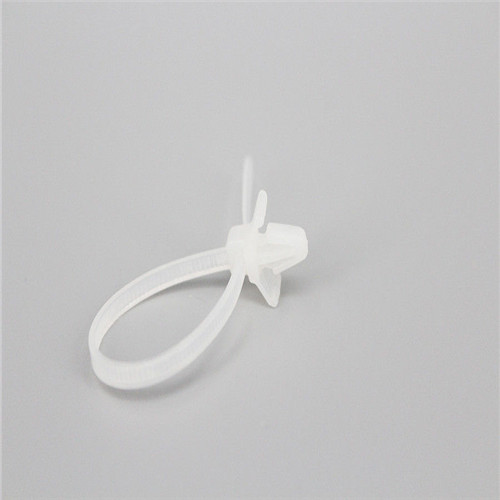

The 4.8x120mm Push Mount Cable Tie is a compact panel-mount fastening solution designed to bundle wires and secure the cable assembly directly to a mounting panel. Made from UL Nylon 66, it provides 50 lbs of tensile strength while combining cable bundling and panel fixing in one component. The push mount design helps keep wiring organized and positioned at a fixed installation point.

With a 4.8mm width and 120mm length, this push mount cable tie accommodates cable bundles up to 25mm in diameter. Its relatively short cable length makes it suitable for compact wiring assemblies where a larger tie is unnecessary. The Nylon 66 construction offers good mechanical strength, electrical insulation, heat resistance, and aging resistance, with an operating temperature range of -35°C to 85°C. Natural, UV black, and other colors are available for different OEM requirements.

Key Features

• 4.8x120mm push mount cable tie

• UL Nylon 66 material with UL 94V-2 rating

• 50 lbs / 22 kg tensile strength

• Maximum bundle diameter of 25mm

• Integrated mounting design for panel fixing

• Compact length for space-conscious wiring assemblies

• Operating temperature from -35°C to 85°C

• Natural, UV black, and custom colors available

Applications

Suitable for automotive wiring, electrical control panels, equipment assembly, machinery, and other applications requiring a compact cable tie with integrated panel mounting.
