Self-locking Nylon Cable Ties

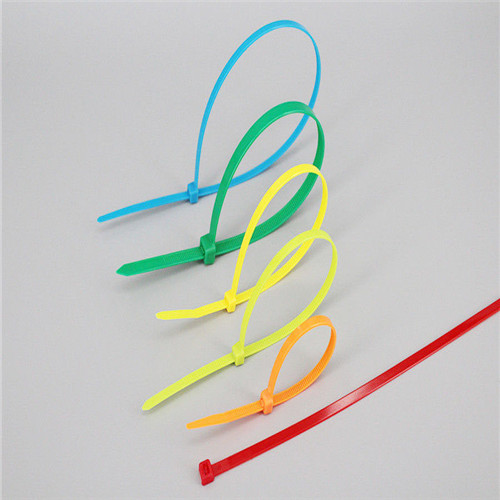

Full-size self-locking nylon Cable Ties are available in multiple strap widths and lengths for different cable bundling requirements. MZ Electronic offers standard widths from 2.5 mm to 12 mm and lengths from 80 mm to 1200 mm, covering miniature wire organization through larger cable assemblies. Depending on the selected width, tensile strength ranges from 18 lbs for 2.5 mm ties to 175 lbs for 9.0 mm ties.

Made from UL-approved Nylon 66, these nylon Cable Ties feature an integrated locking head that holds the strap after installation without requiring a separate buckle. The material provides good electrical insulation together with resistance to heat, aging, and corrosion. Standard material performance is UL 94 V-2, with an operating temperature range of -35°C to 85°C. Natural and UV black are standard colors, while other colors can be supplied according to project requirements.

This full-size nylon cable tie range is suitable for electrical wiring, cable harnesses, control panels, telecommunications equipment, machinery, appliance assemblies, automotive wiring, and general cable management. Buyers can select the strap width and length according to required tensile strength, bundle diameter, and installation space.

Key Features

• Full size range from 2.5 mm to 12 mm width

• Length options from 80 mm to 1200 mm

• Tensile strength from 18 lbs to 175 lbs by standard width

• Manufactured from UL-approved Nylon 66

• Integrated self-locking head for straightforward installation

• UL 94 V-2 rated material

• Operating temperature: -35°C to 85°C

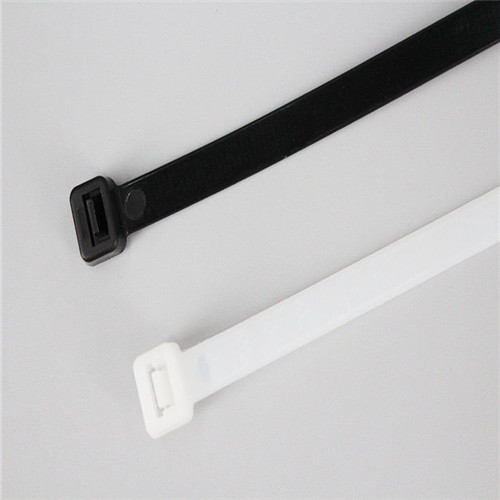

• Natural, UV black and custom colors available

Applications

These self-locking nylon Cable Ties are suitable for electrical wiring, cable harnesses, control cabinets, telecommunications equipment, machinery, automotive wiring, appliance assemblies, and other applications requiring different tie widths, lengths, and tensile strengths.

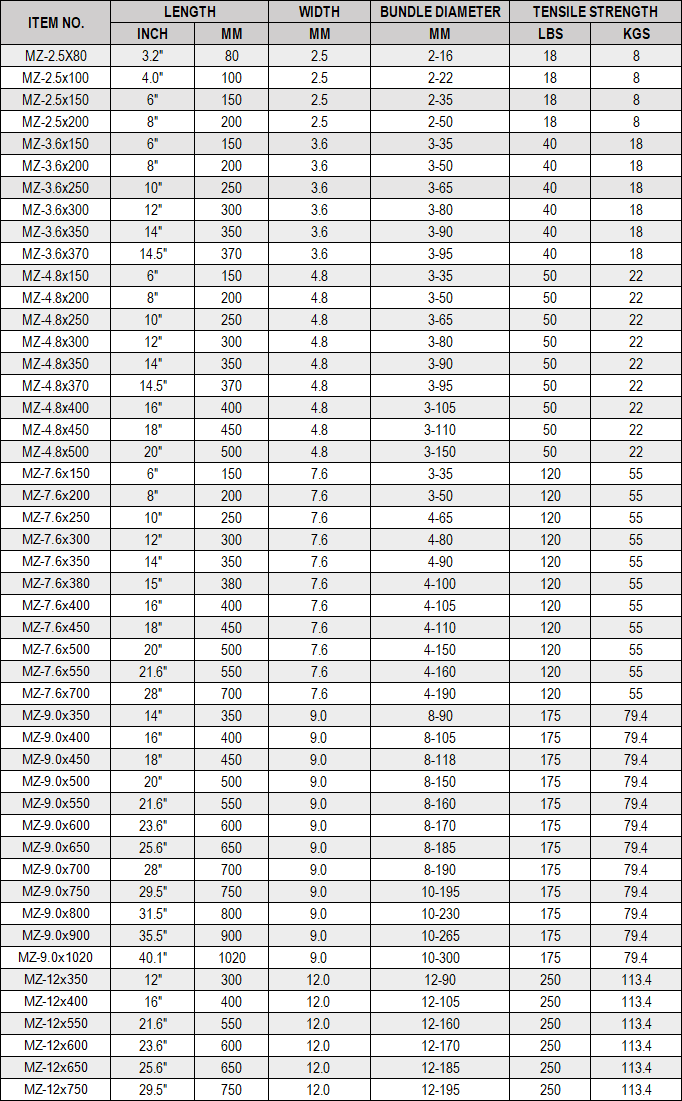

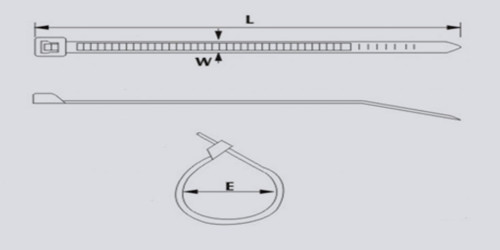

Specification

(Other sizes available upon  customers request)
